Function of a Main Marine Power Distribution Panel
Power Distribution Guide for Boat Builders, Engineers, and Owners
Tuesday July 7, 2027
Every electrical system on a boat depends on one thing: safe, reliable power distribution. And, at the heart of that system sits the Main Marine Electrical Power Distribution Panel.
Whether you’re a boat builder, a naval architect, a purchasing agent, or an owner trying to understand what’s actually happening behind the helm, knowing how marine electrical panels function is fundamental to designing safe, dependable, and serviceable electrical systems.
If we were having this conversation in a classroom, the simplest way to put it is this:
The main marine electrical distribution panel distributes power and incorporates overcurrent protection devices (OCPD) to safeguard the onboard wiring system.
That definition matters. A panel safely routes electrical power from one or multiple sources to the onboard loads while providing circuit-by-circuit overcurrent protection to each branch conductor. Nothing more. Nothing less. Get that idea right and the rest of this piece will make sense.
What Is a Main Marine Electrical Panel?

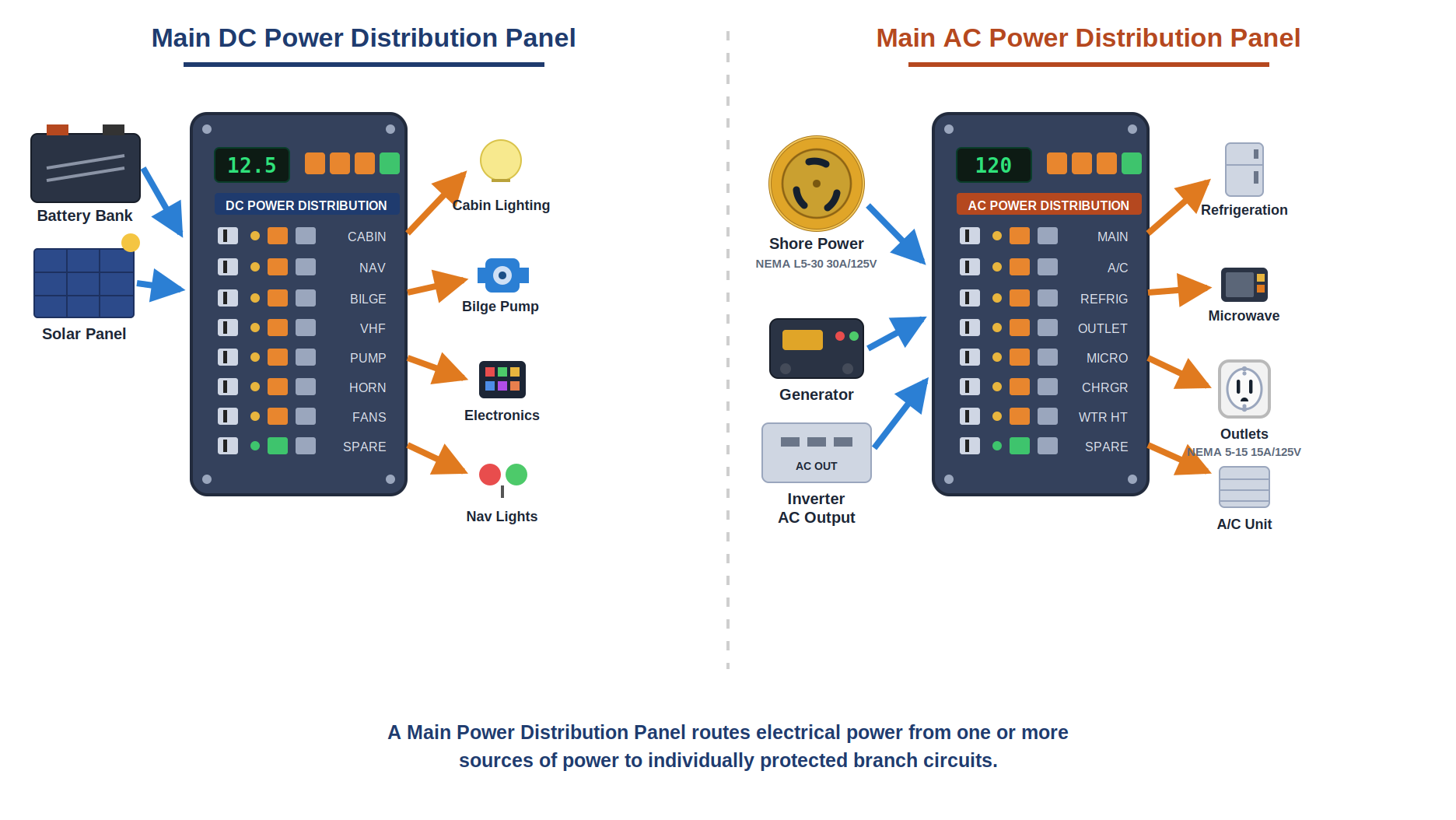

At its most basic level, a main marine electrical panel is the central distribution hub for a vessel’s AC and DC electrical system. It acts as the bridge between power sources (battery banks, alternators, solar, generators, shore power, and inverter outputs) and the loads distributed throughout the boat (navigation electronics, lighting, pumps, and everything else).

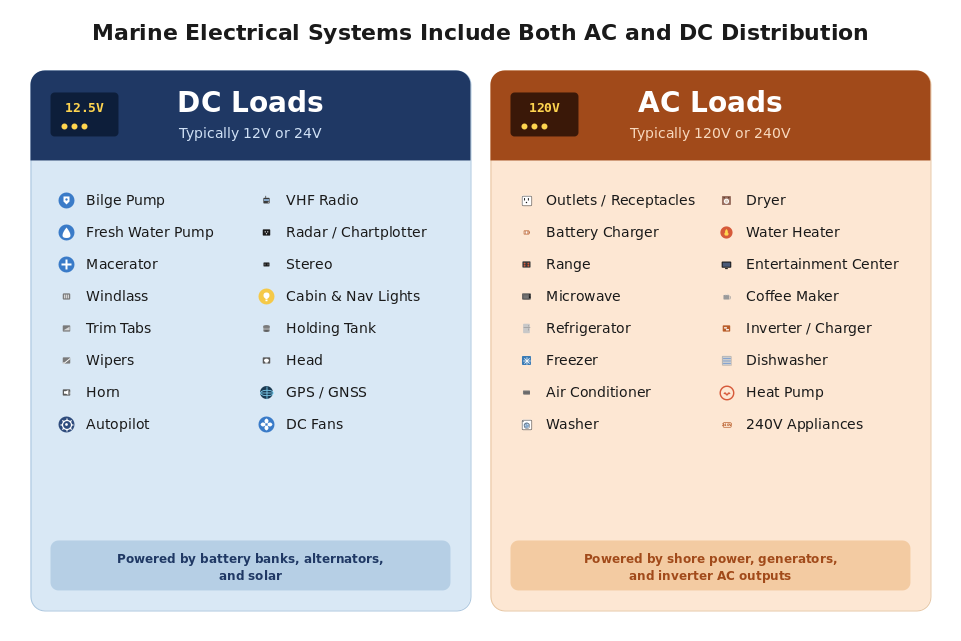

Marine electrical systems may include both AC and DC distribution configurations.
Typical DC Loads
Bilge pump, fresh water pump, macerator, windlass, trim tabs, wipers, horn, head blower, VHF radio, radar, stereo, lighting, holding tank sensors, head, GPS, and DC fans.
Typical AC Loads
Outlets, the battery charger, range, microwave, refrigerator, freezer, air conditioner, washer, dryer, water heater, entertainment center, coffee maker, inverter/charger output, and dishwasher.
But here’s the thing. In a professional marine environment, “basic” is not good enough. A high-quality marine electrical panel must do three things at once:
- Functionally isolate AC and DC systems so that a fault on one system cannot energize the other.
- Clearly identify every section by system type, voltage, and source.
- Properly segregate the systems with adequate spacing and barriers. Separate enclosures by default, or shared enclosures only where ABYC E-11 specifically permits, with proper barriers, labeling, and clearance.
In short, the panel is the command center of marine power distribution. Engineered correctly, it makes the rest of the boat’s electrical system possible. Engineered carelessly, it becomes the single most expensive mistake in the build.
Key Terms for the Modern Engineer
Before we go any deeper, let’s get on the same page with the vocabulary. These five terms define the performance and safety of every assembly we build at Paneltronics:

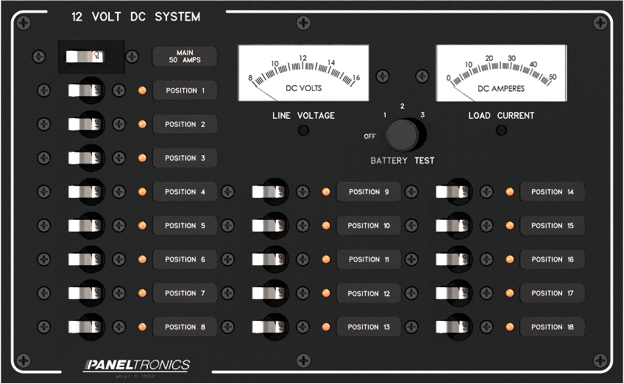

Front view of a Paneltronics power distribution panel. Every circuit is identified by a label, protected by its dedicated circuit breaker, and switched independently.
The formal engineering process of calculating the total power demand for every AC and DC device on the vessel, separately. Engineering begins here. If you under-specify the load, you under-specify the panel, the conductors, and the protection, and that’s where reliability problems start. (We’ll go deeper on load analysis in our next post.)
The wiring that carries electrical current from sources, through the panel, to the loads. In marine panels, we prioritize tin-plated copper conductors. The tin coating gives you superior corrosion resistance in salt-laden environments where ordinary copper would oxidize and lose conductivity over time.
The maximum current a conductor can carry continuously without exceeding its temperature rating. Ampacity is a function of conductor size, insulation rating, ambient temperature, and how many other current-carrying conductors are bundled with it. ABYC E-11 publishes the tables; we use them on every build.
These are the circuit breakers or fuses designed to interrupt current flow during a fault. One of the most critical principles in marine panel engineering is this: the overcurrent protection device mounted in the main distribution panel is selected primarily to protect the conductors it serves. Equipment protection is a secondary consideration. Integral overcurrent protection, the kind built into the load itself, is what provides primary load protection. Two different functions, two different devices.
A high-current-rated conductive bar, usually made of tin-plated copper, that serves as a common connection point for multiple circuits within the panel. Done right, the bus bar is the single low-impedance node where many branches connect to a single source of power.

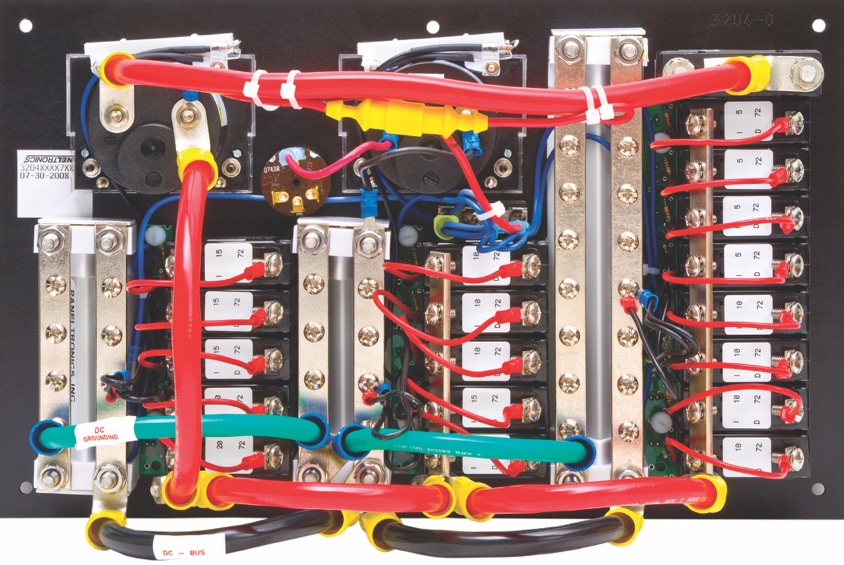

Rear views of the same panel highlight the tin-plated copper bus bar and conductor architecture that ties every breaker back to its source.
What Issues Does an Electrical Panel Solve?
The marine electrical panel is designed to solve three primary challenges: safety, reliability, and organization. Electrical faults in a marine environment can escalate quickly. A short circuit or an overload can damage wiring, destroy equipment, or, at worst, start a fire on a vessel where there’s nowhere to run. The panel exists to make sure none of that happens.
1. Preventing Catastrophic Failure
Marine electrical systems live in an unforgiving environment. Ambient temperature swings, vibration, and humidity are constant stressors, and they don’t get a day off. Without a well-engineered panel, these factors can contribute to the development of stray-current corrosion or thermal events. By centralizing circuit protection, the panel ensures that if a short occurs, the fault energy is contained before it can damage the vessel’s infrastructure.
The overcurrent protection device protects the conductor first; load protection is secondary.
2. Managing System Complexity
Modern vessels routinely integrate complex AC and DC architectures simultaneously: 12VDC and/or 24VDC, 120VAC and/or 240VAC shore-power, plus inverters, chargers, battery management, and shore-power transfer. A professional marine electrical panel provides the necessary physical separation and proper grounding architecture to keep these systems from interfering with one another.

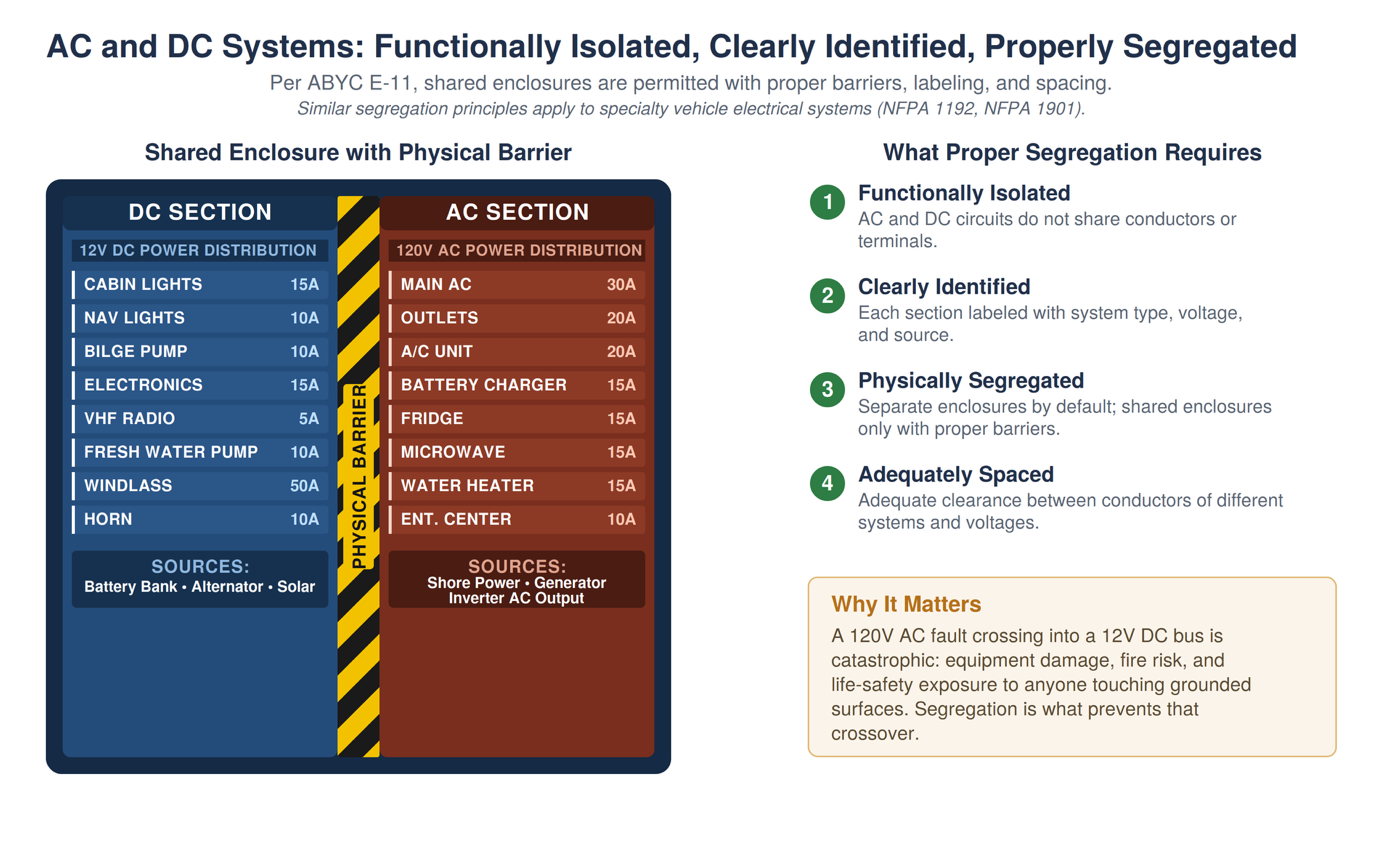

AC and DC systems must be functionally isolated, clearly identified, and properly segregated. Shared enclosures are permitted only with proper barriers, labeling, and spacing per 2025 ABYC E-11.9.
This segregation is what reduces the risk of cross-system faults and simplifies the integration of inverters, chargers, and shore-power systems. It’s also what makes the panel inspectable, traceable, and serviceable five or ten years from now, which matters because boats are not disposable.
3. Simplifying Troubleshooting and Service
In a mission-critical environment, downtime is expensive. An organized marine electrical panel uses clear and legible labeling, logical grouping of breakers, and accessible terminal spacing. That design intent allows technicians to quickly identify and isolate issues, instead of navigating a disorganized web of field-improvised wiring at the dock at 2 a.m. with a flashlight in their teeth.
You’ve seen the alternative. We’ve all seen the alternative. It’s not pretty, and it’s not safe.
The ABYC Standard: The Engineering Benchmark
Everything we just walked through (segregation, labeling, conductor sizing, overcurrent protection) is codified in a single document that the marine industry treats as the law of the land: the ABYC E-11 standard for AC and DC electrical systems on boats.
The American Boat & Yacht Council (ABYC) is a non-profit, member-based organization that develops voluntary safety standards for the design, construction, maintenance, and repair of recreational boats. Established in 1954, ABYC is the primary body responsible for the technical framework that ensures boats are built and operated safely in the United States and many other parts of the world. Two members of our team currently serve on ABYC Project Technical Committees. That’s not a marketing line. That’s how we stay current with what the standard says before it’s published.
If you’ve ever wanted to actually read what E-11 says about wire sizing, voltage drop, or overcurrent protection, we keep an excerpt of the standard posted right on our website.
The ABYC for Specialty Vehicles

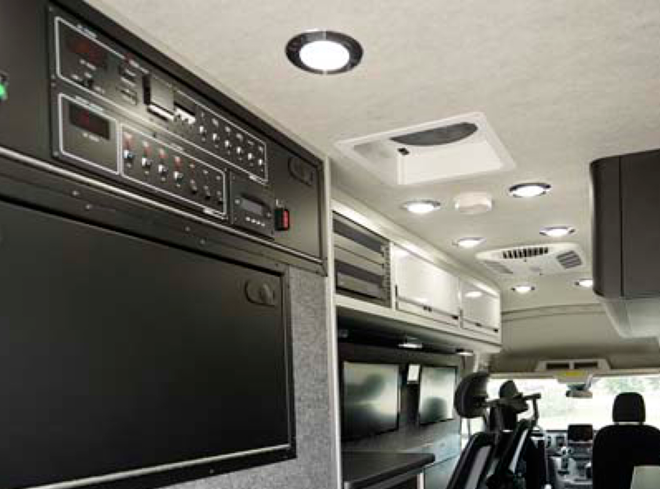

Specialty vehicle interiors face the same environmental stressors as marine vessels: vibration, temperature swings, and humidity. ABYC-grade engineering is increasingly the benchmark for these builds.
While the American Boat and Yacht Council is dedicated to the technical framework for the marine industry, its standards are increasingly used in the world of specialty vehicles. For manufacturers of mobile command centers, bloodmobiles, mobile medical units, fire and safety vehicles, and luxury motorcoaches, ABYC represents the pinnacle of electrical safety and durability.
Why? Because the environmental stressors found at sea are remarkably similar to those faced on the road. Constant vibration, ambient temperature variation, intense humidity, and the absolute necessity for rugged power distribution make marine-grade engineering a logical choice for land-based mission-critical applications. A panel that survives a sportfishing tournament off Stuart, FL will survive a fire call in Phoenix.
Why the Panel Matters
Every safety principle and every engineering decision made during the design of a boat eventually converges at the electrical panel. It is the point where load analysis becomes physical reality.
If you’re a boat builder, a naval architect, a purchasing agent, or an owner, choosing the right electrical panel is a strategic decision that affects the safety and longevity of your product. Reliability isn’t an assumption. It’s the product of engineering intent expressed through high-quality hardware, executed by people who know what ABYC E-11 actually requires.
For over 47 years, Paneltronics has focused on engineering these critical assemblies so that reliability is never left to chance. An electrical panel is not simply a location for switches. It is the physical embodiment of a disciplined engineering strategy designed to manage load, protect infrastructure, and ensure operational safety.
As we continue to push the boundaries of marine architecture, the electrical power distribution infrastructure remains the most important component of the build. At Paneltronics, we remain the proven authority in engineered electrical solutions, ensuring that your vessel or specialty vehicle is ready for whatever the environment demands.
