What is ABYC E-11?
A conductor operating near its ampacity limit. A breaker sized to protect the load but not the wire. A grounding path appears intact, yet corrosion slowly increases resistance because of the use of dissimilar metals or improperly torqued threaded parts. In a controlled environment, these oversights might go unnoticed for years. In a marine environment, where vibration, humidity, salt exposure, and mixed AC and DC architectures coexist, those same oversights compound quickly.
This is precisely why ABYC E-11 exists.
ABYC E-11 is the American Boat & Yacht Council standard governing marine AC and DC electrical systems. For boat builders, naval architects, marine OEM engineers, and users, it provides a structured engineering framework to reduce fire risk and shock hazards, control stray-current corrosion, and ensure predictable long-term system performance.
Understanding ABYC E-11 is not about memorizing clauses. It is about understanding the engineering intent behind marine electrical safety.
💡 Key Takeaway
A marine power distribution panel is not just a collection of switches. It is the physical convergence point where complex electrical calculations, circuit protection, and environmental resistance come together into a single, compliant hardware solution.
Engineering Begins with Load Analysis and Conductor Selection
At its core, ABYC E-11 reinforces disciplined conductor sizing. In marine DC systems, especially, voltage drop control is critical. Sensitive navigation electronics, communication systems, digital switching modules, and pumps require stable voltage under dynamic load conditions.
The standard requires conductors to be selected not only for ampacity but also for insulation temperature rating, installation method, bundling, and allowable voltage drop. That level of precision requires formal load analysis and coordinated protection strategy rather than nominal component selection.
For marine power distribution panels, these factors directly affect bus bar sizing, feeder conductor capacity, and breaker selection. The panel becomes the physical embodiment of those calculations. If the distribution architecture is not engineered correctly, the entire system will be impacted by these weaknesses.
Circuit Protection Is About Protecting Conductors, Not Equipment
One of the most misunderstood principles reinforced by ABYC E-11 is that the primary function of panel mounted branch overcurrent protection devices is to protect each branch feeder wire conductor. Equipment protection is secondary.
Battery banks, in particular, represent high fault current sources. If a short occurs and the protective device is improperly located or mismatched to conductor capacity, fault energy can escalate rapidly. ABYC E-11 addresses protection placement relative to the source to minimize unprotected conductor length.
🛠️ ABYC E-11 DC Design Note
Overcurrent protection devices must be located within 7 inches of the power source when measured along the conductor. This distance can be extended to 40 inches if the conductor is contained throughout its entire length in a sheath or enclosure, such as a conduit or junction box.
This is where the design of a boat’s electrical panel becomes critical. Breaker placement, grouping, and coordination are engineering decisions, not layout preferences. Properly engineered marine circuit protection ensures predictable fault isolation, reduces arc risk, and simplifies troubleshooting.
When protection architecture is engineered into the panel itself, compliance becomes systemic.

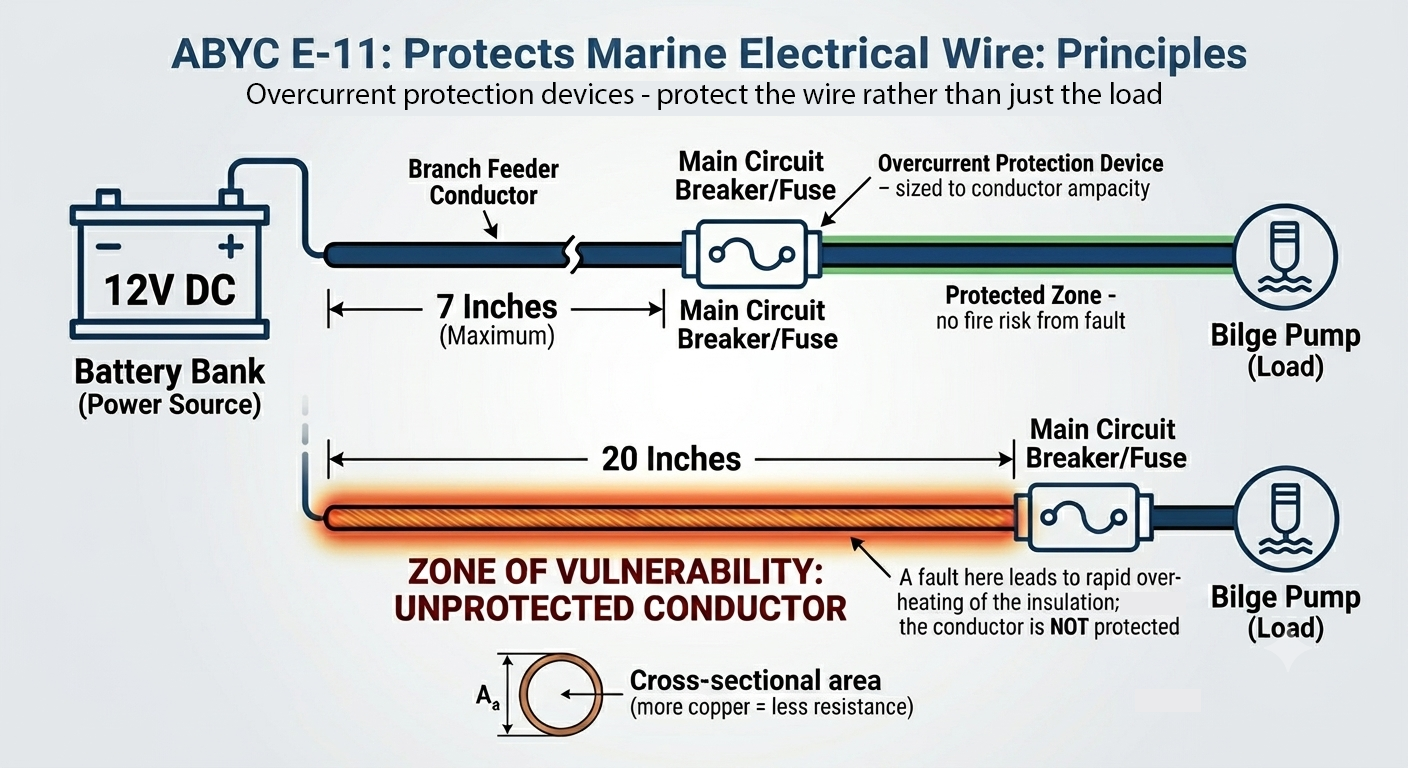

Visualizing ABYC E-11 placement standards for overcurrent protection devices (OCPD). Moving the main circuit breaker or fuse beyond the maximum 7-inch allowance creates an unprotected "zone of vulnerability" where insulation failure can lead to rapid overheating.
AC and DC System Integration Requires Deliberate Separation
Modern vessels routinely integrate shore generated AC power and onboard generated AC power with DC battery power systems. Inverters, solar panels, battery chargers with AC passthrough capability now introduce the possibility of improper segregation of the AC and DC systems that presents both safety hazards and long-term reliability concerns.
ABYC E-11 reinforces physical conductor separation requirements, proper equipment grounding conductors, and controlled bonding paths. These principles directly influence enclosure layout, terminal spacing, routing strategy, and grounding bus configuration.
A well-designed marine electrical panel anticipates AC/DC coexistence. It provides logical separation and labeling that reduces the risk of cross-system faults. Engineers who design distribution systems without considering segregation early often encounter integration challenges later in production.
Grounding and Bonding in a Conductive Environment
Unlike shore installations, marine electrical systems exist in a conductive environment. Stray current corrosion is not theoretical; it is measurable and expensive. ABYC E-11 addresses grounding and bonding practices that reduce unintended current paths and galvanic interaction.
From an engineering standpoint, grounding architecture affects bus configuration, termination hardware, corrosion resistance, and negative return design. Tin-plated conductors, corrosion-resistant aluminum components, and secure mechanical bonding connections are not cosmetic choices; they are durability strategies.
In an ABYC-compliant electrical panel, grounding is integrated into the system design from the outset. It is not delegated to field improvisation.
The Panel as the Convergence Point of Compliance
Every major principle in ABYC E-11 ultimately converges at one location: the marine power distribution panel.
Conductor sizing decisions terminate there. Overcurrent protection coordination is implemented there. AC and DC segregation becomes a physical reality there. Labeling and accessibility are executed there.
A properly engineered boat electrical panel reflects disciplined load analysis, coordinated protection architecture, corrosion-resistant material selection, and clear service access. When panels are designed with ABYC E-11 principles in mind, installation is faster, surveys are smoother, and long-term reliability improves measurably.
Electrical compliance, in practice, is a product of engineering intent expressed through hardware.
📋 The ABYC E-11 Panel Design Checklist
Before finalizing your next vessel power distribution layout, ensure your system addresses these core engineering criteria:
- ☐ Load Analysis Validation: Are your panel bus bars explicitly sized to handle continuous dynamic peak loads rather than just nominal component averages?
- ☐ Overcurrent Proximity: Is the branch circuit protection positioned to minimize unprotected conductor lengths from your primary power feeds?
- ☐ Physical AC/DC Segregation: Does the panel design incorporate a distinct, physical, insulated barrier or separate compartment to isolate AC from DC systems?
- ☐ Environmental Material Spec: Are all mechanical fasteners, terminals, and grounding buses specified with tin-plated copper or corrosion-resistant materials to actively prevent galvanic degradation?
Conclusion
ABYC E-11 is not merely a compliance benchmark. It is an engineering discipline that shapes the reliability of marine electrical systems at the design stage. For marine OEMs, aligning power distribution panels and electrical assemblies with ABYC-informed principles reduces risk, improves integration efficiency, and strengthens long-term system performance.
In demanding marine environments, reliability is not assumed. It is engineered, beginning at the panel.
