Why Two Single-Pole Breakers Cannot Replace One Double-Pole Breaker on a 240-Volt Circuit
Monday, July 8, 2026
Estimated read time: 5 Minutes
On the meter, 120 plus 120 equals 240. In the panel, it does not.
Who Should Read This?
Boatbuilders, specialty-vehicle OEMs, marine surveyors, field technicians, electricians, and electrical engineers responsible for specifying, installing, inspecting, or servicing AC distribution systems. If you work with marine or mobile power distribution, this distinction directly affects safety, code compliance, equipment reliability, and liability.
The Mistake That Looks Correct
Imagine you're ordering a new AC distribution panel for a vessel or mobile command unit and need to power a 240-volt load. You notice two available 120-volt breaker positions on the panel. The math seems obvious:
On the meter, yes. In the panel, no.
This assumption is one of the most common specification mistakes we encounter. Two independent 120-volt single-pole breakers cannot safely protect or control a single 240-volt circuit. Only a properly designed double-pole breaker guarantees that both hot conductors turn ON, OFF, and TRIP together.
What looks like a simple shortcut can create dangerous servicing conditions, equipment damage, code violations, and failed inspections.
How 240-Volt Power Really Works
In North America, shore power and utility power are commonly supplied as either:
- 120V, 30A service
- 120V, 50A service
- 120/240V, 50A split-phase service
- 240V, 50A service
- 240V, 100A service
In a basic 120-volt branch circuit, a single-pole breaker protects the one black hot conductor. The white neutral and green grounding conductor complete the circuit.

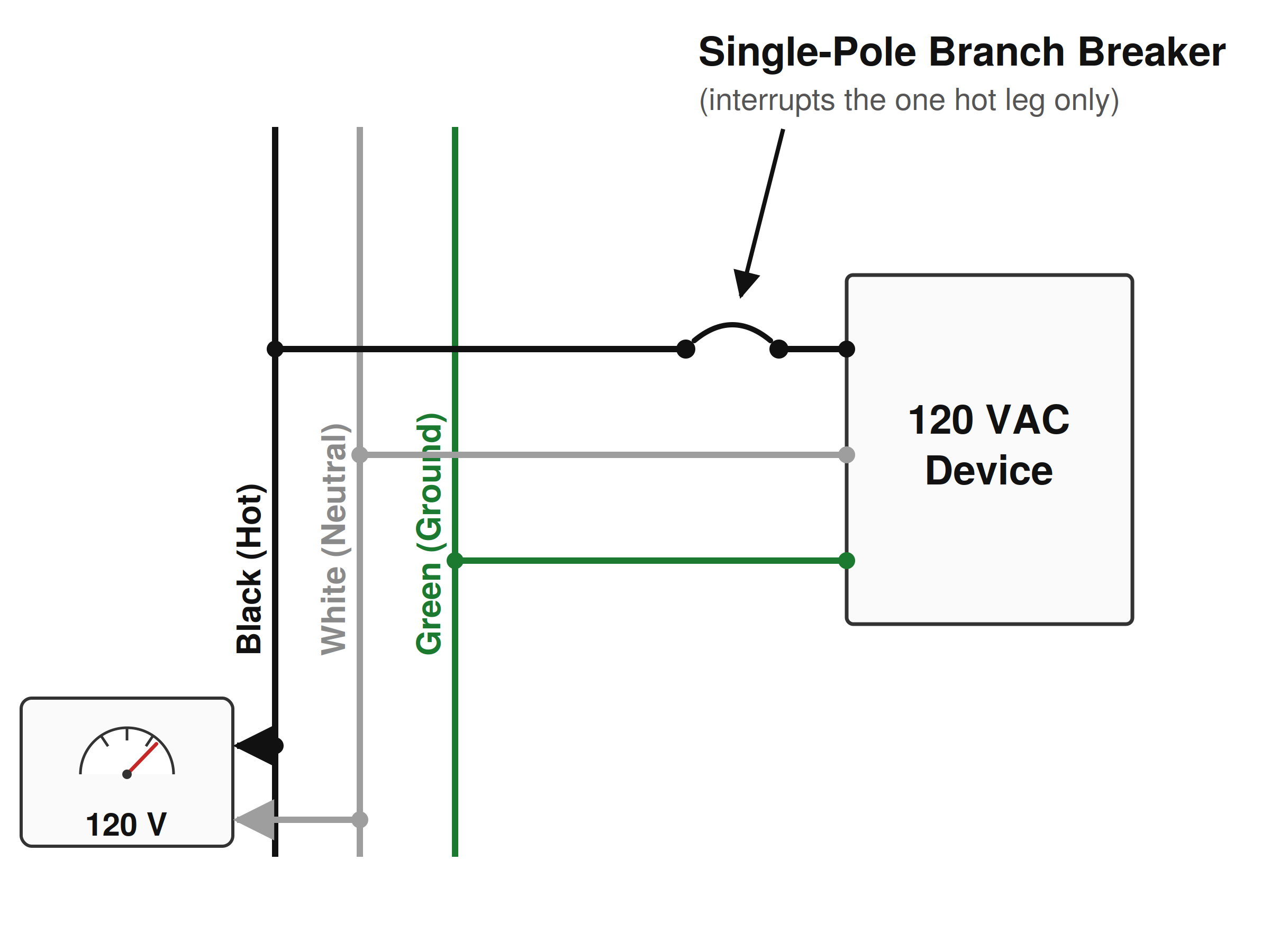

Figure 1. A typical 120-volt branch circuit. The single-pole breaker interrupts the one hot leg only.

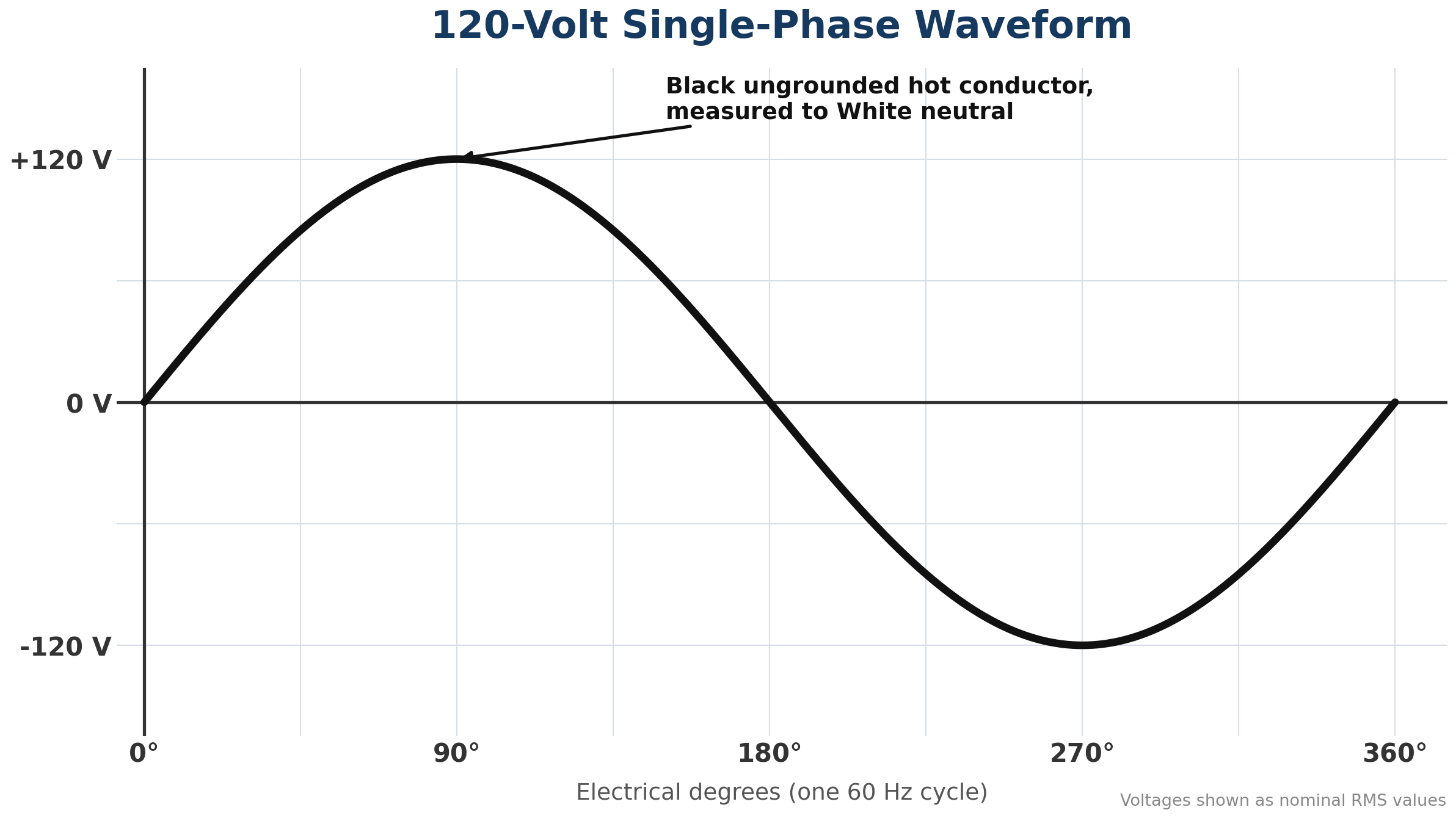

Figure 2. The 120-volt single-phase waveform, measured from the black hot conductor to the white neutral.
A typical 120/240-volt split-phase system contains:
- One black ungrounded conductor (Hot Leg L1)
- One red ungrounded conductor (Hot Leg L2)
- One white grounded neutral conductor
- One green grounding conductor
The two hot conductors are 180 degrees out of phase with each other. If you measure voltage from either hot leg to neutral, you read approximately 120 volts. If you measure between the two hot legs, you read approximately 240 volts.

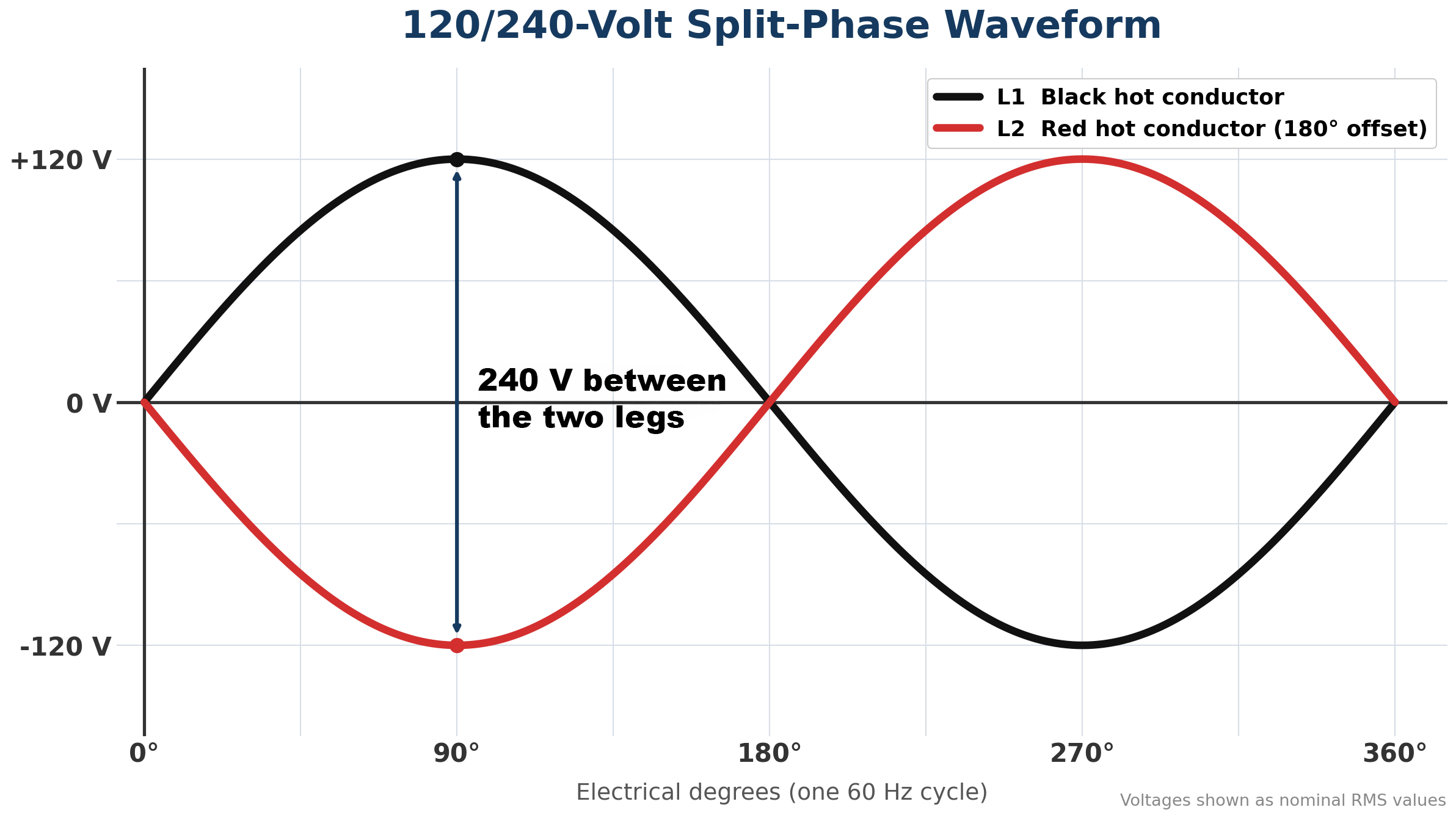

Figure 3. The two hot legs are 180 degrees out of phase. Note the voltage levels at 90 and 270 degrees: while one leg peaks positive, the other peaks negative, creating the full 240-volt potential for
This is a critical distinction:
- 240 volts is not created by adding two independent 120-volt circuits together.
- Instead, the two hot conductors are opposite ends of the same split-phase power source, creating the full 240-volt potential between them.

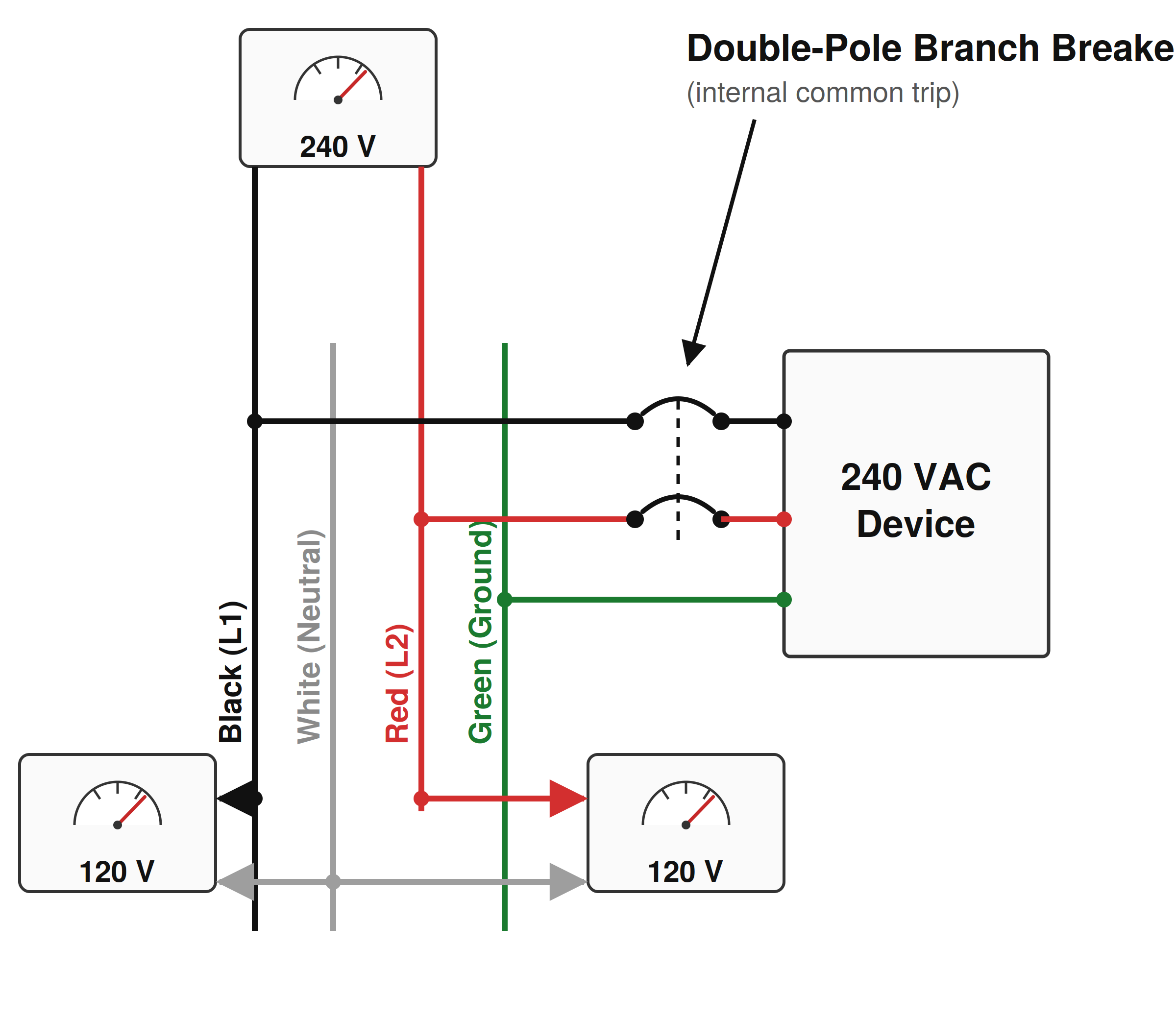

Figure 4. The 120/240-volt split-phase branch circuit. Each hot leg reads 120 volts to neutral, and 240 volts appears between the two hot legs. Both hot legs pass through one double-pole branch brea
Because both conductors form a single 240-volt circuit, they must be switched and protected as a single circuit.
Why Protection Matters
On vessels and specialty vehicles, 240-volt circuits commonly power:
|
|
These loads are designed to operate with both hot legs present simultaneously. If one hot leg disconnects while the other remains energized, several problems may occur:
- Unexpected 120-volt energization
- Nuisance equipment failures
- Phase-loss conditions
- Thermal damage
- Motor-control malfunctions
- Inverter faults
- Potential shock hazards during servicing
Why Two Single-Pole Breakers Don't Work
Each single-pole breaker is designed to interrupt only one conductor. There is no internal mechanism that guarantees simultaneous operation with the neighboring breaker. If one breaker experiences an overload or fault current and trips, the adjacent breaker may remain closed.
The result is a dangerous condition:
- One side of the supposedly disconnected 240-volt load remains energized.
- A technician working on equipment believed to be de-energized may instead encounter an unexpected live conductor.
The panel itself can make this failure hard to spot. When a breaker trips electrically, its operating handle moves positively to the OFF position. In a two single-pole installation, that means one handle now shows OFF while its neighbor still shows ON. A technician glancing at the panel gets an ambiguous picture of a circuit that is half dead and half live, and a meter that reads 120 volts on equipment that was assumed to be fully de-energized.
This is not merely a theoretical concern. The condition has the potential to damage equipment and create serious safety risks.

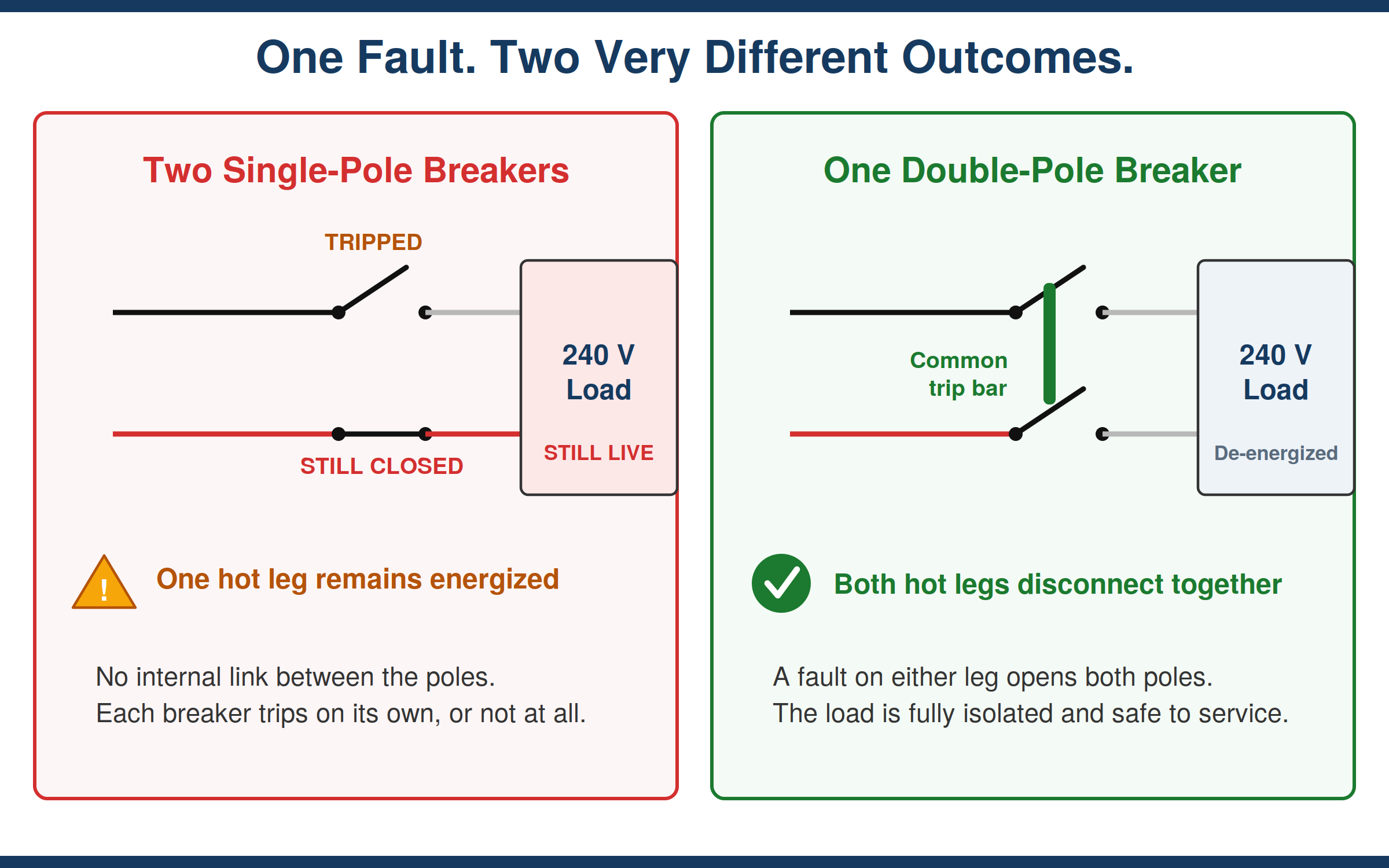

Figure 5. The same fault, two very different outcomes. With independent single-pole breakers, one hot leg can remain live at the load. A double-pole breaker disconnects both legs together.
Why a Double-Pole Breaker Is Different
A double-pole breaker contains an internal common-trip mechanism. Inside the breaker is a mechanical trip bar that links both poles together. When a fault occurs on either hot leg, both poles trip simultaneously.
This provides:
- Simultaneous disconnection
- Proper fault isolation
- Safer maintenance conditions
- Protection against phase-loss conditions
- Compliance with marine and industrial standards
A double-pole breaker treats a 240-volt load as what it actually is: One circuit, not two.
What About Handle-Tied Single-Pole Breakers?
A common misconception is that adding an external handle tie between two single-pole breakers creates the equivalent of a double-pole breaker. It does not. The handle tie connects only the operating handles. It does not connect the internal trip mechanisms.
During an overload or fault event, one breaker may trip without producing sufficient mechanical force to trip the adjacent breaker. One breaker can therefore open while the other remains closed.
Consider how quality circuit breakers are actually built. They are trip-free by design, meaning the breaker will trip internally on an overload even if the operating handle is forcibly held in the ON position. The handle simply does not control the trip mechanism. If holding one handle cannot prevent a trip, then tying two handles together cannot cause one. The same hazardous condition remains.
This is why industry standards do not consider two tied single-pole breakers an acceptable substitute for a true double-pole breaker.

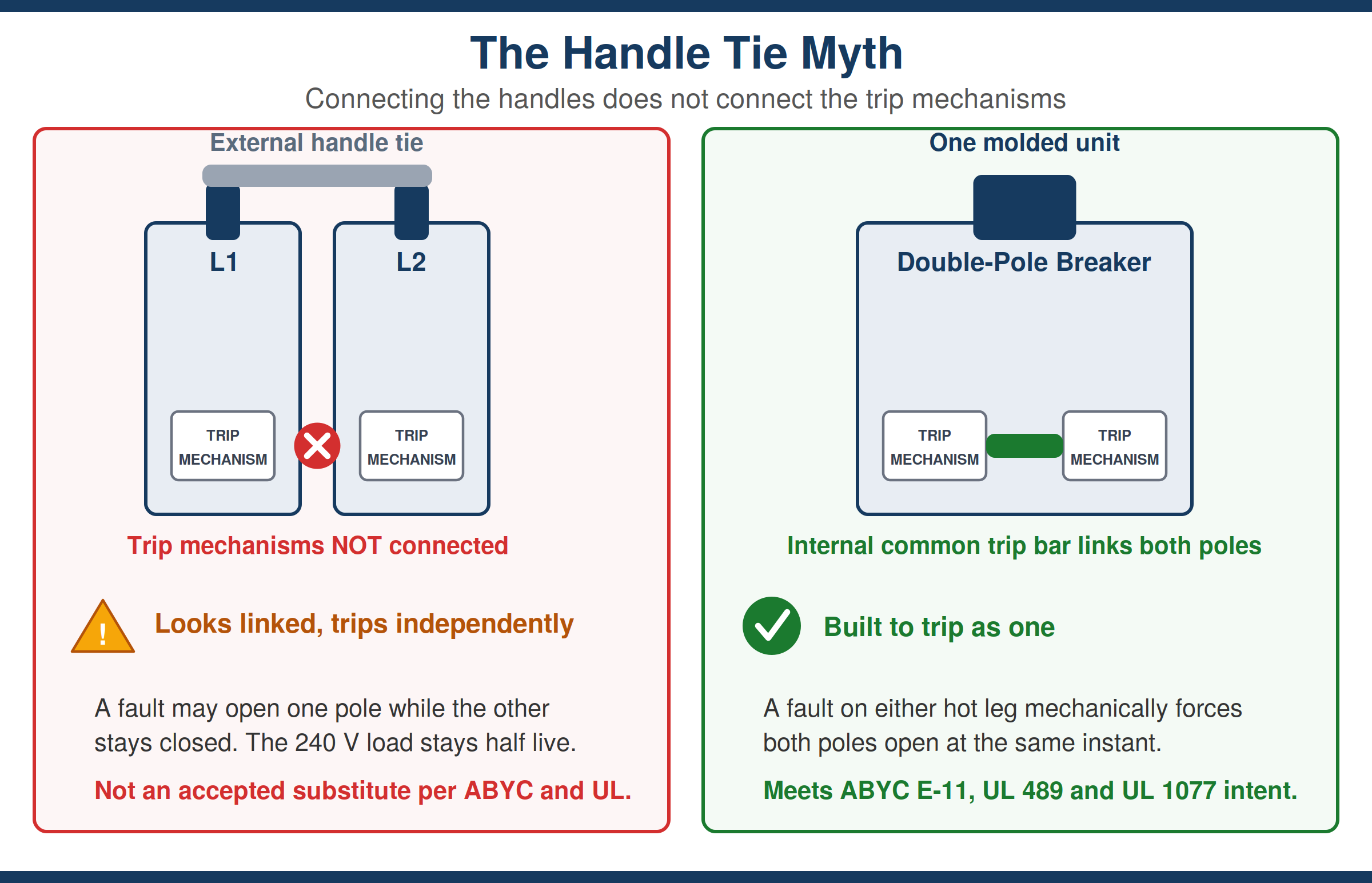

Figure 6. A handle tie links the operating handles only. A true double-pole breaker links the trip mechanisms with an internal common trip bar.

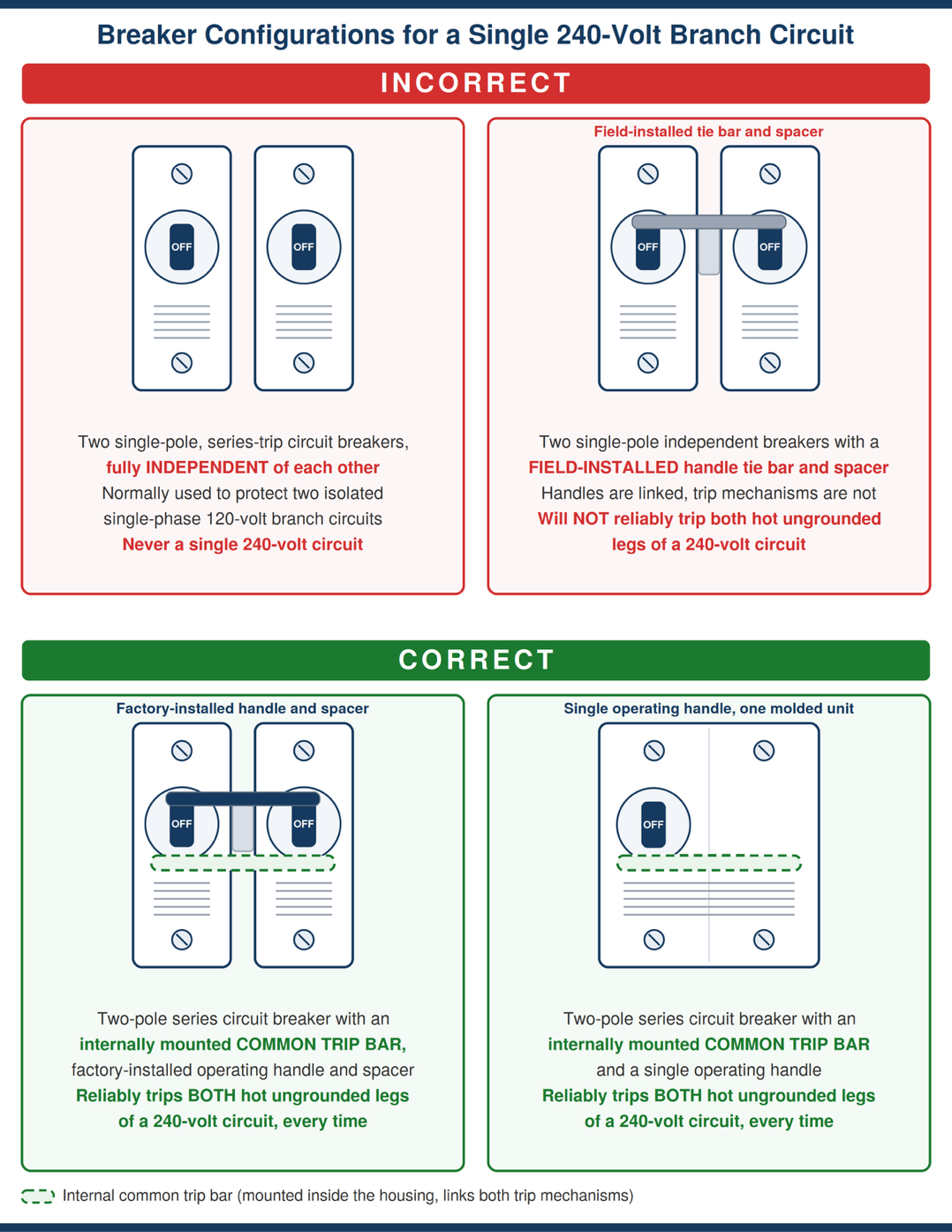

Figure 7. The four configurations at a glance. Only a two-pole breaker with an internally mounted common trip bar reliably trips both ungrounded legs of a 240-volt circuit.
What the Standards Require
- ABYC E-11: ABYC E-11.10.2.5.2 requires that 240-volt AC circuits aboard vessels use overcurrent protection that simultaneously opens both ungrounded conductors. This requirement exists specifically to prevent single-leg energization conditions.
- UL Standards: UL 1077 and UL 489 establish safety and performance requirements for supplementary protectors and molded-case circuit breakers used in electrical systems. For multi-pole applications, these standards require common-trip functionality.
- NFPA 70: NFPA 70 Article 240.15 likewise recognizes the requirement for properly configured multi-pole overcurrent protection where multiple ungrounded conductors form a single circuit.
- U.S. Coast Guard Considerations: The U.S. Coast Guard references these standards for vessels operating in U.S. waters. Failure to meet these requirements can create problems during inspections, surveys, and insurance reviews.
Real-World Example: Panel 3307 vs. Panel 3310
Two frequently compared Paneltronics products illustrate the difference.
Panel 3307
Designed for 120VAC service
- Dual 30A single-pole mains
- Supports two independent 120V sources
- Not intended for true 240V branch-circuit distribution

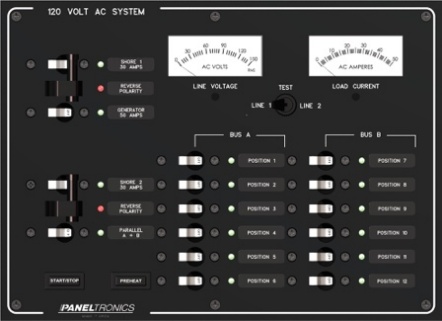

Panel 3307: a 120 VAC system panel with independent single-pole mains.
Panel 3310
Designed for 240VAC service
- 50A three-pole main breaker
- Controls both hot legs together
- Meets ABYC and UL requirements for 240V applications

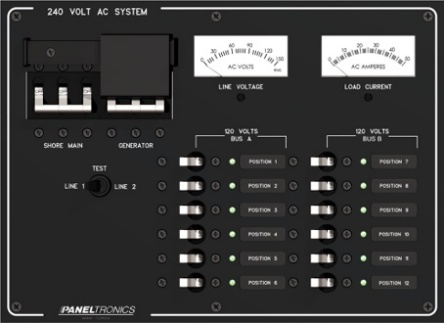

Panel 3310: a 240 VAC system panel with multi-pole mains that switch both hot legs as one circuit.
Although these panels appear similar from the front, they are engineered for different electrical systems. Attempting to use a 120V panel architecture to serve a 240V load introduces the very risks discussed throughout this article.
How to Avoid the “120 × 2” Mistake
Before specifying or purchasing a panel:
- Verify the actual voltage requirements of every load.
- Specify a true double-pole breaker for every 240V branch circuit.
- Confirm that all protective devices carry the proper voltage rating.
- Review the single-line diagram with the panel manufacturer before release.
Taking these steps during design is significantly less expensive than correcting field issues after installation.
Why the Details Matter
From the front of the panel, the difference between two single-pole breakers and one double-pole breaker is easy to miss. Behind the panel, however, that difference determines whether a system responds safely during a fault, whether equipment remains protected, and whether technicians can service the system with confidence.
When you specify a proper double-pole breaker, you're doing more than satisfying a code requirement.
You're protecting:
- The electrical system
- The connected equipment
- The vessel or vehicle
- The people who must service it later
So the next time someone suggests that two 120-volt breakers can replace one 240-volt breaker, remember:
Not in power distribution. Not in safety. And not in compliance.
