A guide to specifying double-pole breakers in marine circuit breaker panels

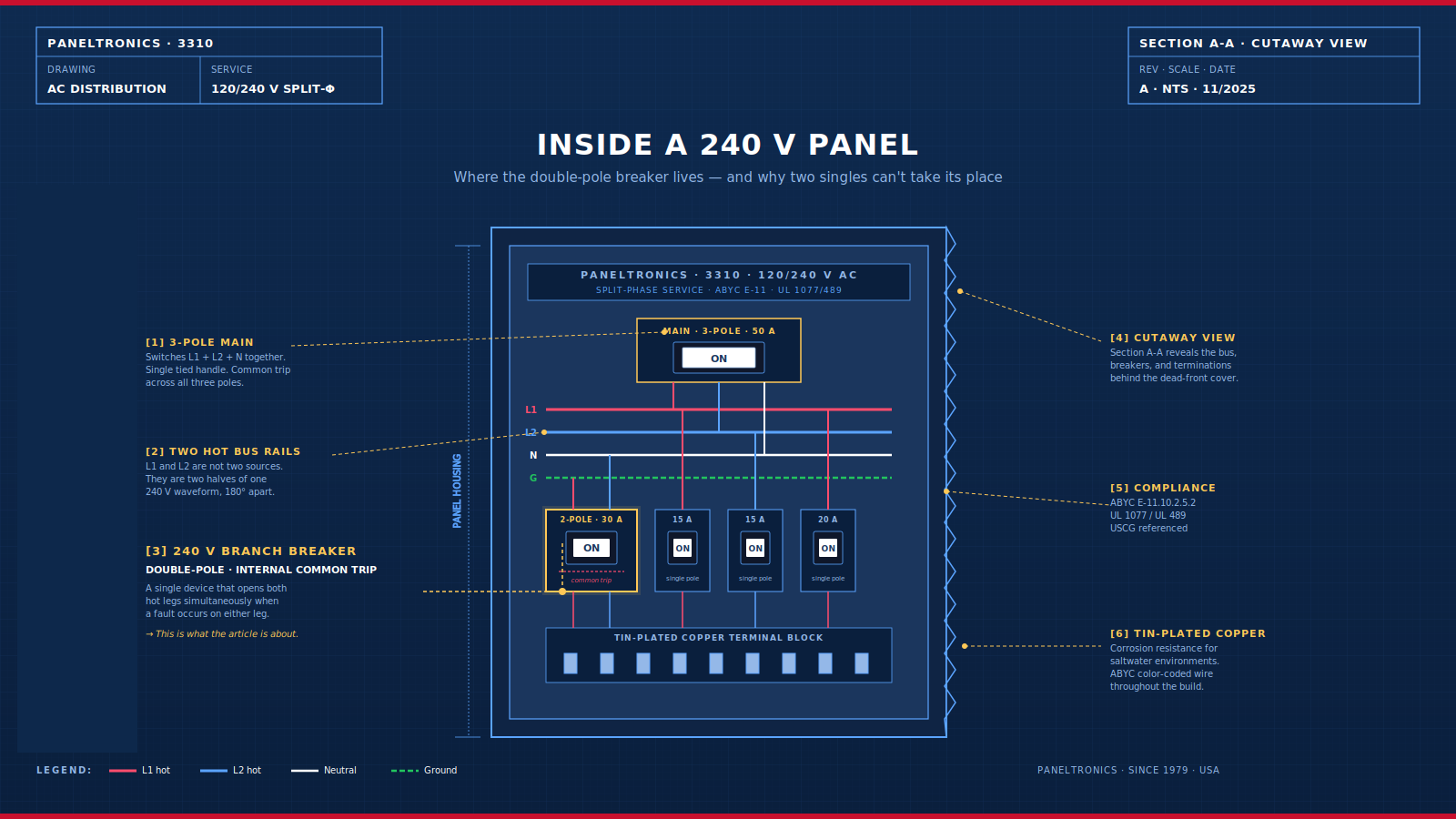

Cutaway view of a marine electrical panel showing a true 240 V split-phase configuration.

The Paneltronics 3310 in cutaway representation view — a true 240 V split-phase panel built around a main and a properly specified double-pole branch breaker.

It’s 11 p.m. at the dock. The galley range on the boat in slip 14 just stopped working. The owner cycles the power; the breaker handle on the panel is in the OFF position, and they’ve done what any reasonable person would do: they reset it. Five minutes later, it pops again. They call the yard.

When the technician pulls the dead-front off the panel the next morning, here’s what they find. The 240 V range was protected by two single-pole 120 V breakers with a tie bar across the handles. One of those breakers had tripped. The other was still closed, and the bus on that side of the range was still hot.

That’s the kind of problem this article is about.

On a meter, 120 plus 120 equals 240. In a panel? Not quite. Two 120 V single-pole breakers do not provide safe control of a 240 V circuit. Only a 240 V double-pole breaker ensures that both hot legs operate together, providing the right safety profile, a balanced load, and compliance with the standards governing marine and industrial AC systems.

It’s one of the most common mistakes we see in panel specifications. It looks like a reasonable shortcut. It isn’t. Here’s why.

Who this is for: boatbuilders, yacht builders, sportfishing OEMs, RV and motorcoach manufacturers, marine surveyors, field technicians, and electrical engineers responsible for AC distribution panels. If you specify panels, install them, or sign off on them, this distinction matters for personnel safety, code compliance, and long-term system reliability.

How 240-volt power really works

In most North American AC systems, power is delivered as a split-phase 120/240-volt service. The configuration uses two hot wires that are 180 degrees out of phase with each other, plus a neutral.

Measure between either hot wire and the neutral, you read 120 V. Skip the neutral entirely and measure between the two hot wires? You read 240 V. The two 120 V halves aren’t added together to make 240; they’re inherently part of a single 240 V potential because they sit on opposite phases.

Think of it this way: the two hot legs aren’t two independent 120 V sources. They’re two halves of the same 240 V source, separated by a neutral that can be referenced or ignored depending on what the load needs.

Diagram showing L1 and L2 180 degrees out of phase with 120 V line-to-neutral and 240 V line-to-line readings.

Figure: L1 and L2 are 180° out of phase on the same waveform. Either hot to neutral reads 120 V. Across the two hots reads 240 V. There is no second source — only one waveform with two halves.

That distinction matters because of what it means for protection. A 240 V load is one circuit. It has to be switched and protected as one circuit. Both hot legs must open together, simultaneously, when a fault occurs or when service is required.

On a vessel or specialty vehicle, that 240 V circuit may supply an air-conditioning compressor, a watermaker, a galley range, shore-power equipment, or another critical AC load. Those loads expect both hot legs to operate together. When they don’t? You get nuisance failures, unsafe troubleshooting conditions, and equipment damage.

Why two singles don’t equal one double

Each 120 V single-pole breaker is designed to interrupt one hot leg of a single-phase circuit — that’s its full role in the circuit protection scheme. It does its job for that one leg, and that’s all it does. There’s no mechanical or electrical connection to the breaker next to it.

So what happens when two independent single-pole breakers are used to control a 240 V load? They don’t guarantee that both hot conductors will disconnect simultaneously. If one breaker trips on a fault and the other doesn’t see the same fault current, one leg of the circuit stays energized. Now there’s a 120 V potential present at equipment that’s supposed to be off. A technician opens it up expecting zero volts and gets one of the worst kinds of surprise.

Safety sequence diagram showing how one leg can remain energized when two single-pole breakers are used on a 240 V load.

Figure: The unsafe sequence in three steps. The double-pole breaker prevents this entire chain at Step 2 by opening both legs together.

This isn’t just a code issue. It’s a real safety condition. The unbalanced state can also damage equipment, especially loads that depend on a balanced 240 V input to operate properly. Sensitive electronics, motor controls, and inverter-based systems are particularly vulnerable.

A 240-volt load is one circuit. It must be switched, protected, and de-energized as one circuit — both hot legs, every time.

A double-pole breaker solves this with a single mechanical feature called an internal common trip bar. The trip bar physically links both poles inside the breaker housing. When a fault on either leg trips one pole, the trip bar simultaneously trips the other. Both legs disconnect together, every time, by design.

What about an external tie bar between two single-pole breakers? Doesn’t that solve the problem?

Short answer: no.

A tie bar clipped onto the operating handles of two separate single-pole breakers may look like it solves the problem. It doesn’t. The tie bar links the operating handles, not the trip mechanisms. When a fault occurs internally, the tripping force on one breaker may not be enough torque to mechanically pull the other breaker’s trip mechanism through the tie bar. One breaker can trip while the other stays closed. The result is the same hazard you were trying to avoid.

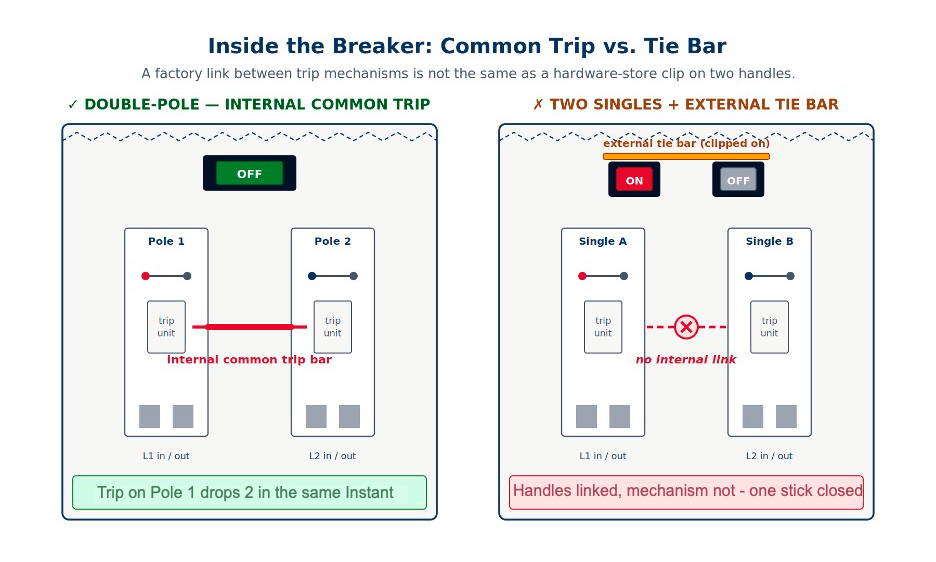

Comparison of an internal common trip bar and an external tie bar on circuit breakers.

Figure: A factory-internal common trip bar (left) physically links both trip mechanisms. An external tie bar (right) links only the handles — not the mechanisms — which is why UL won’t accept it as a substitute.

This is why marine and industrial standards specifically require double-pole breakers for 240 V AC circuits. Two singles with a tie bar are not an acceptable substitute.

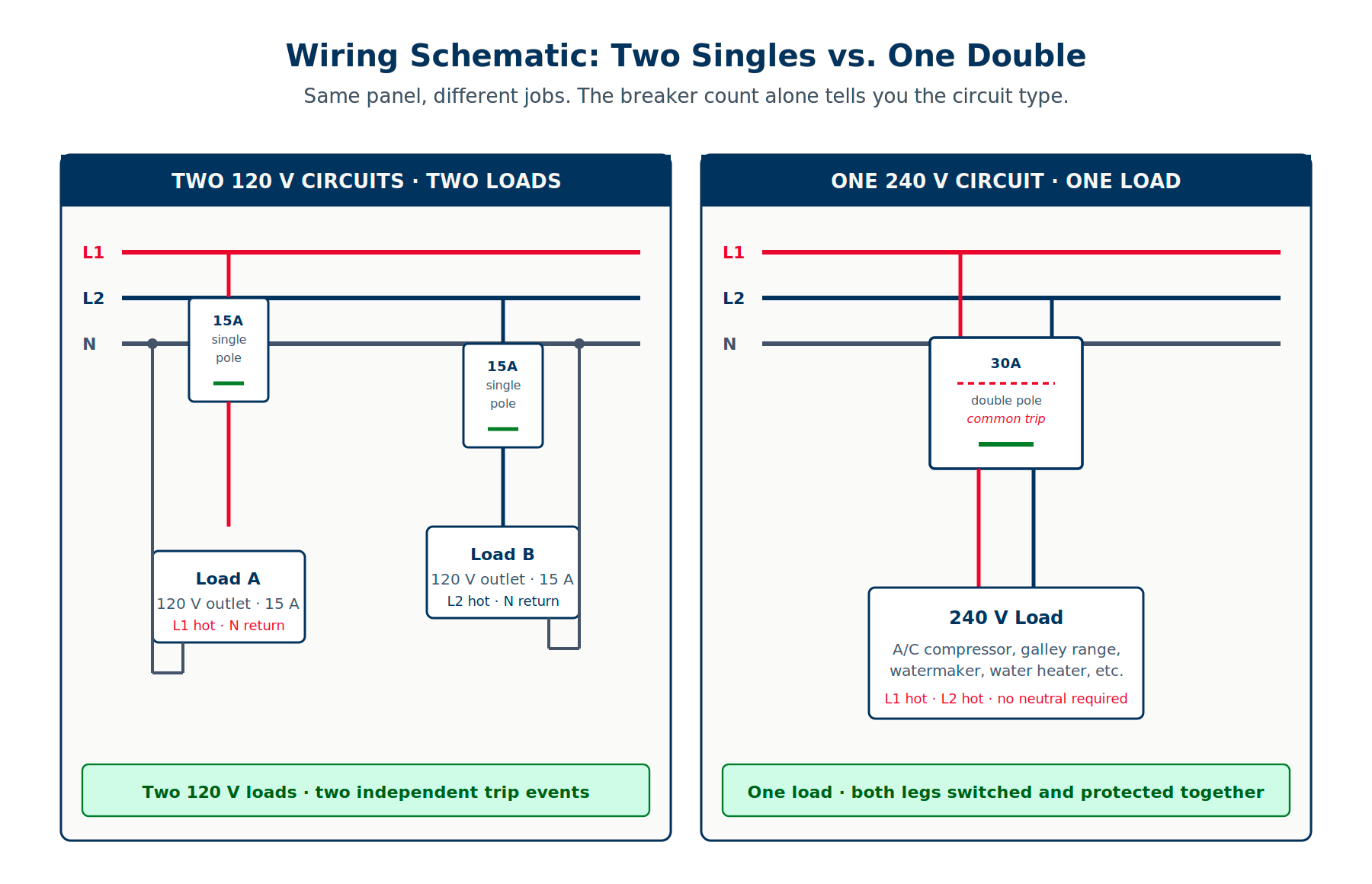

Two single-pole breakers serving separate 120 V loads compared with one double-pole breaker for a 240 V load.

Figure: Two singles on different rails serving two separate 120 V loads is a perfectly fine configuration. A single 240 V load requires a single double-pole device: same panel, completely different job.

What the standards require

Two specific standards govern this requirement on Paneltronics power distribution panels and on most marine and industrial AC systems.

ABYC E-11.10.2.5.2 from the American Boat & Yacht Council requires that any 240 V AC circuit on a vessel use a double-pole breaker that opens both ungrounded conductors simultaneously. The standard exists specifically to prevent the unbalanced single-leg energization condition described above.

UL 1077 and UL 489 from Underwriters Laboratories define the safety and performance requirements for supplementary protectors and molded-case circuit breakers used in panels. Both standards require that a multi-pole breaker rated for a multi-phase circuit have a common trip mechanism. Two single-pole devices, even when mechanically linked externally, do not meet this requirement.

The U.S. Coast Guard also references these standards for vessels operating in U.S. waters. A panel that doesn’t comply with ABYC and UL on its 240 V circuits is not a panel that holds up under inspection or insurance review.

Marine AC distribution system diagram showing shore power, transfer switch, main breaker, and branch double-pole breaker.

Figure: Where the double-pole breaker fits in a marine AC distribution system. Shore power and generator inputs feed a transfer switch, which feeds the main breaker, which feeds the branch double-pole breaker that controls your 240 V load. Every stage in the chain has to handle both hot legs together.

For an in-depth look at how ABYC E-11 governs marine electrical panel design, see our companion blog post on the engineering standard behind reliable marine electrical systems.

A real Paneltronics example: Panel 3307 vs. Panel 3310

Paneltronics 3000 series electrical power panels

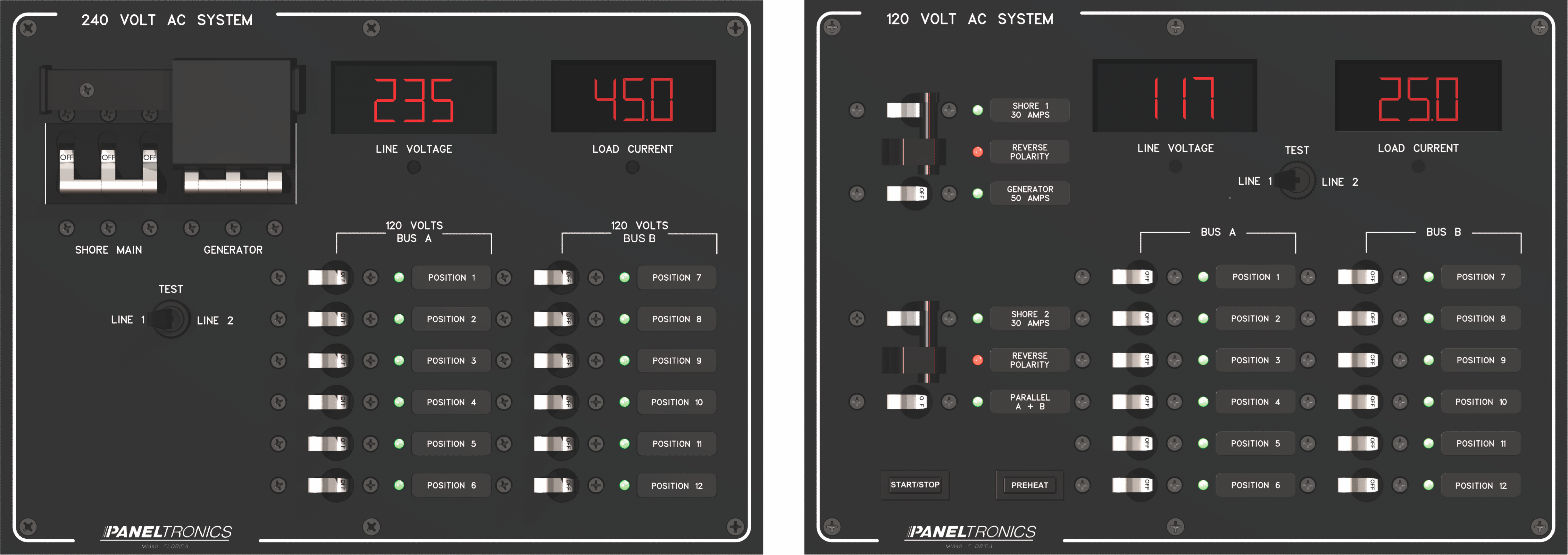

The Paneltronics 3310 (left, 120/240 VAC) and the 3307 (right, 120 VAC). Both panels look similar from the front. The difference is what they're built to safely distribute.



This issue shows up regularly when customers are specifying panels. Two of our most commonly confused models are the Paneltronics 3307 and the Paneltronics 3310. At first glance they look similar — both have dual mains, meters, and multiple breaker positions. Look closer and they’re built for entirely different voltage systems.

The 3307 is engineered for 120 V AC service. It includes dual 30-amp single-pole mains designed for two independent 120 V shore or generator inputs. The panel can distribute two separate 120 V sources, but it cannot combine them into a 240 V circuit. Trying to use it that way produces exactly the unbalanced, partially-energized condition we’ve been describing.

The 3310 is engineered for true 240 V AC service. It uses 50-amp three-pole main breakers (two hot legs plus neutral) that control all conductors together, maintaining proper phase balance and meeting ABYC E-11 and UL 1077/489 requirements.

Panel 3307

120 V AC system · dual 30 A single-pole mains

Panel 3310

240 V AC system · 50 A three-pole main

Designed for two independent 120 V inputs. Distributes two separate 120 V sources. Cannot be cross-wired to produce 240 V.

Designed for split-phase 120/240 V service. Three-pole main switches both hot legs and neutral together. ABYC- and UL-compliant for true 240 V loads.

If you need to control a 240 V load on a vessel, yacht, RV, or specialty vehicle, the 3310 is the AC distribution panel for the job — and we can build a custom panel from that foundation if your application calls for something different. The 3307 won’t provide proper protection or performance, no matter how it’s wired downstream. The panel’s mains voltage rating determines how much power it can safely distribute, and trying to outsmart that limitation creates the exact failure mode this article is about.

Not sure which configuration applies to your build? Send your single-line drawing to your Paneltronics sales engineer before placing the order. We’ll review it and confirm the right model for your voltage and load profile.

How to avoid the “120 × 2” mistake

When you’re designing or ordering a panel, four checks will catch this issue before it becomes a field problem.

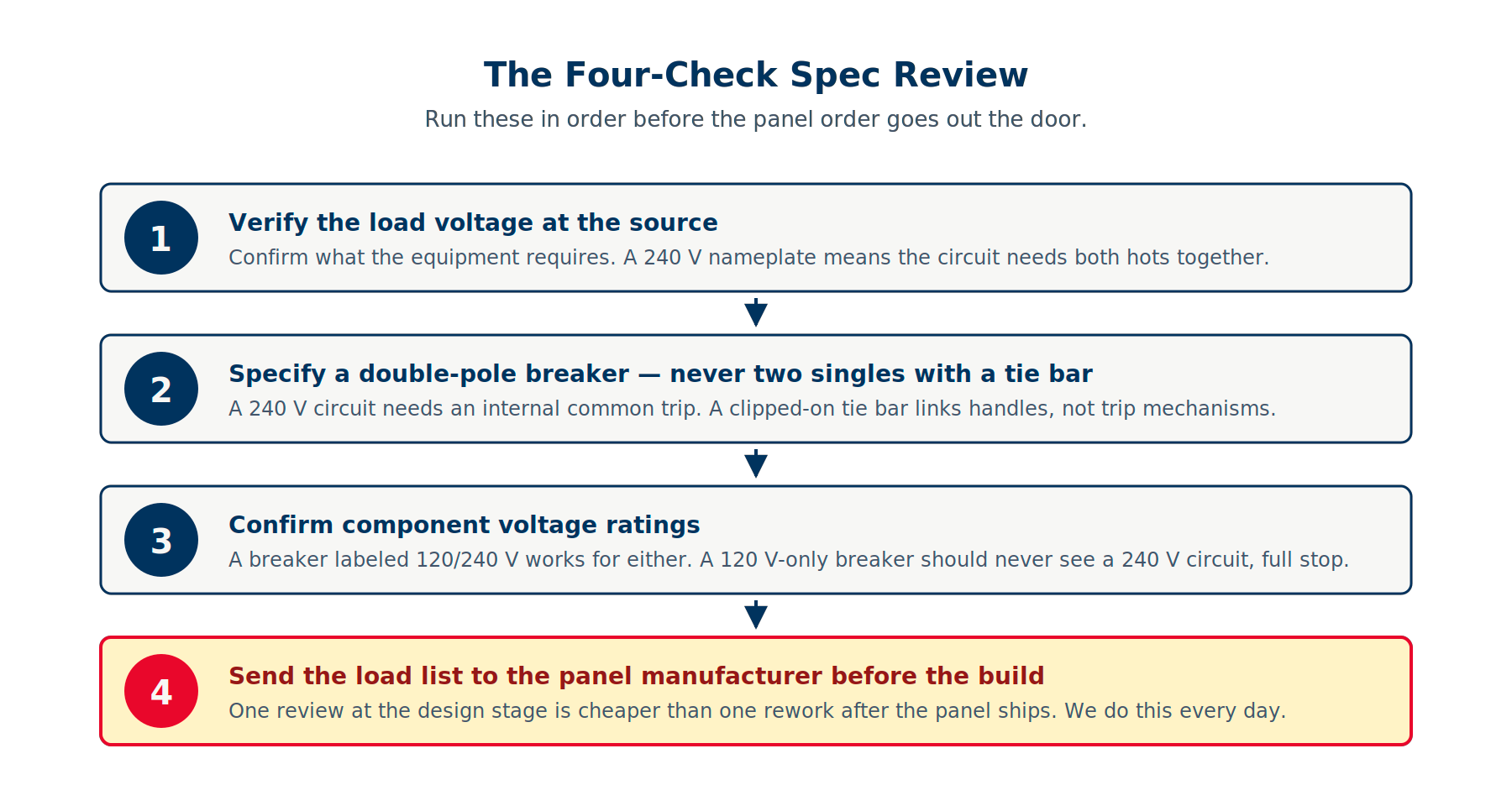

Checklist graphic with four verification steps for specifying a marine panel correctly.

Figure: Four checks, in order. If you can’t answer any of them with a clear yes, the spec isn’t ready to release.

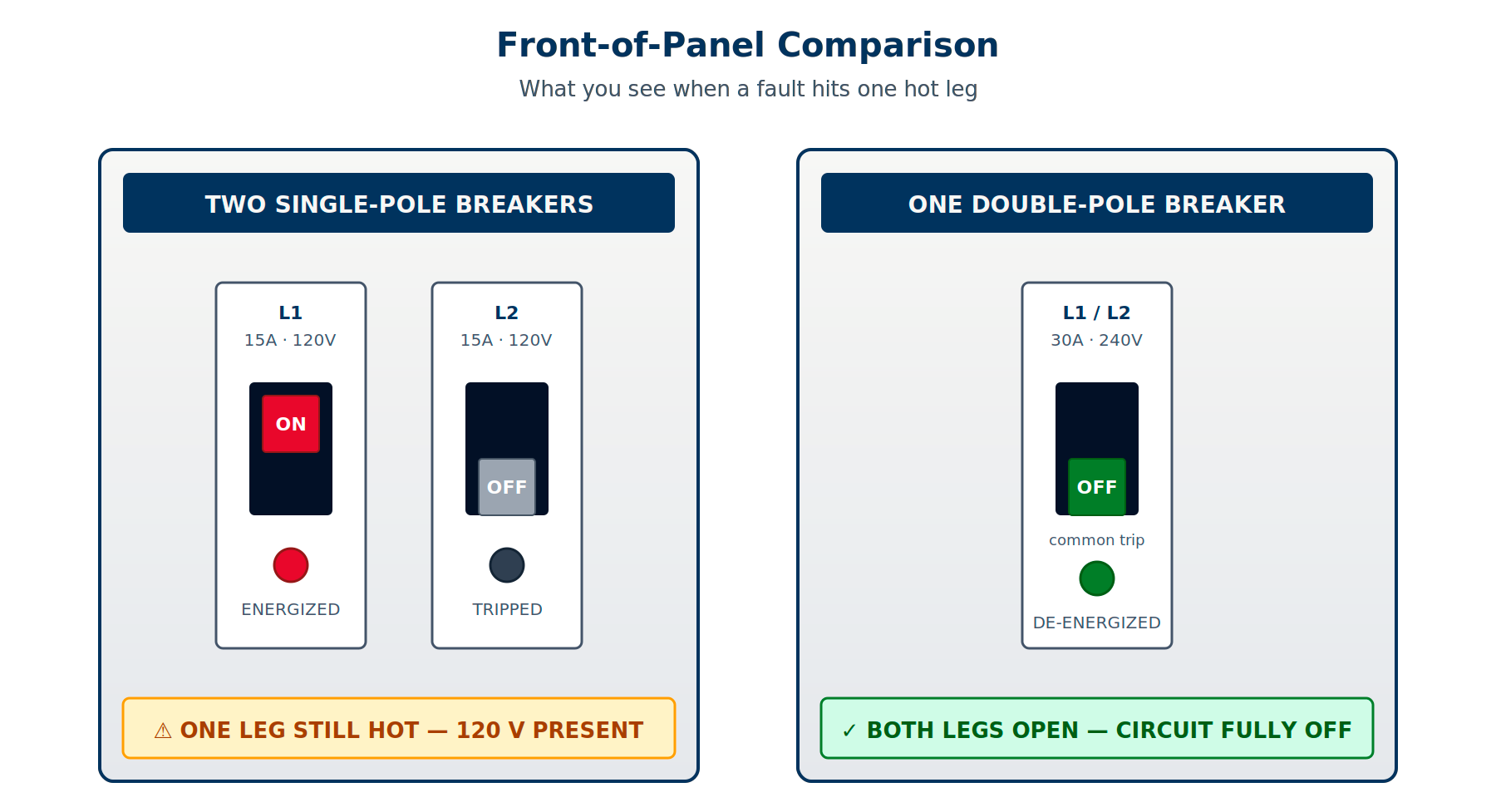

Front-of-panel comparison showing the difference between two single-pole breakers and one double-pole breaker.

Figure: Front-of-panel comparison. The single-pole pair (left) shows ON/OFF because the breakers operate independently — and the “ON” side is still energized. The double-pole breaker (right) shows OFF on both poles, demonstrating the simultaneous trip that protects a 240 V circuit.

Why the details matter

From the front of the panel, every Paneltronics panel looks clean and organized. What’s behind the panel is what separates the one that lasts twenty years from the one that creates a service call in eighteen months. The choice between two singles and one double is one of those behind-the-panel decisions that doesn’t show until something goes wrong.

Every Paneltronics AC distribution panel, waterproof switch panel, and shore-power selector switch is built with proper circuit protection, circuit isolation, simultaneous disconnection, and overcurrent protection in mind. Each product is engineered to comply with ABYC E-11.10.2.5.2, UL 1077/489, and U.S. Coast Guard requirements. We use tin-plated copper bus bars for corrosion resistance in saltwater environments, ABYC color-coded wire for traceable service, and every panel is tested step by step on the floor before it ships.

This is also where the right manufacturer should act like a design partner, not just a component supplier. The right panel layout, breaker selection, labeling, and standards alignment should be engineered into the assembly before it’s built — not discovered after installation.

Specifying a panel with the right double-pole configuration isn’t just code-following. It’s protecting the integrity of the entire electrical system, the equipment connected to it, and the people who’ll service it five years from now.

120 plus 120 doesn’t equal 240. Not in AC power. Not in safety. Not in performance.

At Paneltronics, every panel is designed and built with engineering precision, tested for compliance, and engineered for real-world reliability. After 47 years of building these things in the United States, we’ve learned that the details are what separate a panel that works from a panel that lasts. That’s where our attention goes.

Two singles aren’t one double. Two 120 V breakers don’t make a 240 V circuit. And a tie bar isn’t a common trip. If you remember those three things the next time a 240 V load shows up on your spec sheet, you’ll catch the mistake before the panel ever leaves the design stage.
